¶ Introduction
¶ Preamble
If your machine is a Batch 1 or Batch 2 printer, this guide will bring your machine up to current release.
¶ Z_Endstop Upgrade
The purpose of this mod is to increase reliability of homing the Z Axis. While the IR Probe can be used for standard probe use, we find that using a physical switch is far more reliable for constant reliable checks such as homing Z.
This is a fairly easy mod requiring minimal soldering skills and minimum code changes.
¶ Required Equipment / Tools
¶ Printed Parts
¶ Hardware
¶ Tools
- Soldering Iron
- Solder, Flux, etc
- Crimping Tool
- Only if making your own cable
- Calipers, or equivalent measuring apparatus.
- Measuring your work helps avoid a nozzle crash during calibration.
- Multimeter
- Used for Continuity testing
¶ Supplemental Reading
¶ Guide
¶ Physical Work
If you have a Batch 2 kit with an endstop, skip to step 3.
-
Take a standard Endstop with Lever, orient the lever facing down.
-
Solder wires to Ground and “Normally Closed”
- This should mean that the end stop has continuity when not triggered.
-
Mount it to the Extruder using M2x10 bolts, it will thread into plastic.
-
-

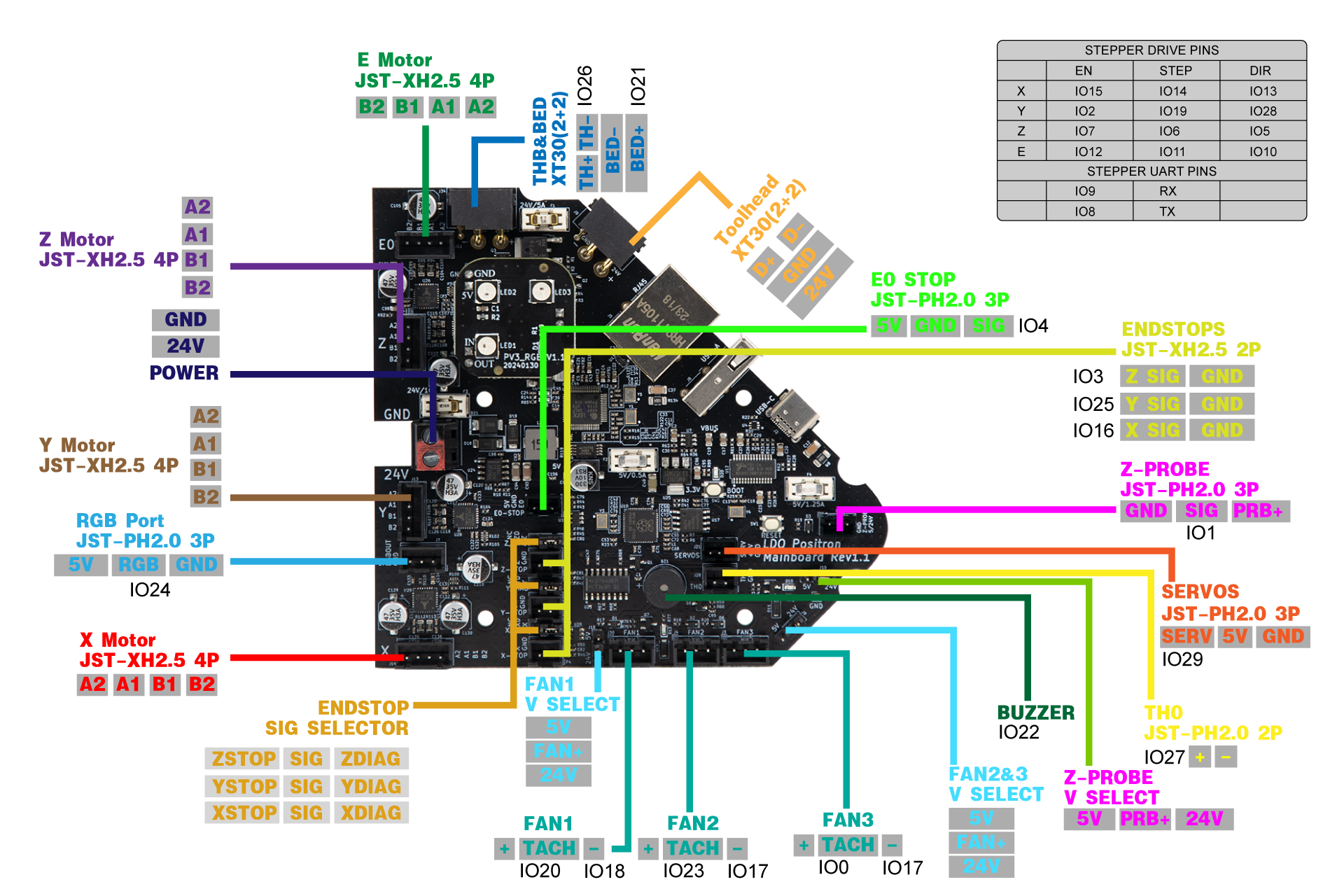

Wire the endstop to Z_ENDSTOP pins on the MCU
- GPIO3 is the pin, Z_Stop on PCB Silk Screen
- Move the Jumper above the Z_Endstop pin to the left, bridging
ZSTOPandSIG -
¶ Printer.CFG Changes
If you haven't already, update your Printer.CFG to the latest release.
The latest configs are already configured to use the Z_Endstop.
¶ Comments, Feedback, and additional Troubleshooting.
If things aren't working as expected, please note what is wrong and provide feedback to @TheNomad, The Positron Team, and LDO. You can also join our Discord to submit a support ticket, ask the community questions, and provide other feedback.
Additionally, if you sign into our wiki using Discord, you can leave a comment below for our team to be able to review this document and update it accordingly.
